The VLX 80 Fixed Picture Window is a floor-to-ceiling glass wall built on a slim 1.97-inch aluminum frame. It’s the product West Covina homeowners choose when they want the San Gabriel Mountains in the living room, not just visible through a divided pane. No sashes, no hinges, no visible hardware. Just glass, frame, and the view beyond it. Juniper Windows West Covina is an authorized ViewLux installation partner, which means we sell, measure, and install this exact product here in West Covina – and we’re the ones who stand behind the install. If you’re researching this window for a remodel or new build, call us at (350) 305-4609 for a free measurement and quote.

Call (350) 305-4609

Product Overview – VLX 80 Fixed / Picture Window

The VLX 80 exists for one reason: to put as much glass in the opening as the structure allows. The frame profile is just 1.97 inches wide, which means over 90% of the rough opening becomes visible glass on most sizes. On a 120-inch-wide unit, that’s a wall of light with only the thinnest aluminum border framing it.

Architecturally, this window is the centerpiece. We see it specified constantly in West Covina’s mid-century ranches being remodeled in neighborhoods like Woodside and South Hills, where homeowners want to open the back wall to the pool or patio. It’s equally at home in the newer builds up toward Galster Wilderness Park, where the lots drop away and the view is the asset.

The frame is what ViewLux calls a “maximally glazed” aluminum profile. In plain terms: the glass sits nearly flush with the exterior plane of the frame, and the interior sightlines are recessed so you see almost no metal from inside the room. The result is that when you walk into the space, your eye goes straight through to the yard, the hills, or the city lights – not to the window itself.

The wall thickness measures 0.079 inches. That’s a meaningful number because it tells you this is a structural aluminum extrusion, not a thin residential snap-together frame. It resists racking, keeps its shape under wind load, and won’t bow over a 10-foot span. For a fixed window, that rigidity is what protects the glass seal and keeps the window square for decades.

Buyers choose the VLX 80 over other picture windows for three reasons: the slim profile, the span capability, and the finish quality on the aluminum. Powder-coated finishes don’t chalk or peel the way painted wood does, and they don’t fade the way vinyl can after a decade of Southern California sun. In West Covina, where summer UV is relentless, that matters.

Juniper Windows West Covina carries this series as a ViewLux authorized partner, which gives our customers direct access to factory lead times, factory warranty support, and the correct installation training for these specific extrusions. Lots of contractors will install any window you hand them. Very few have manufacturer authorization for the product they’re putting in your wall.

Technical Specifications

Here’s the VLX 80 Fixed / Picture Window by the numbers, as we quote it for West Covina projects:

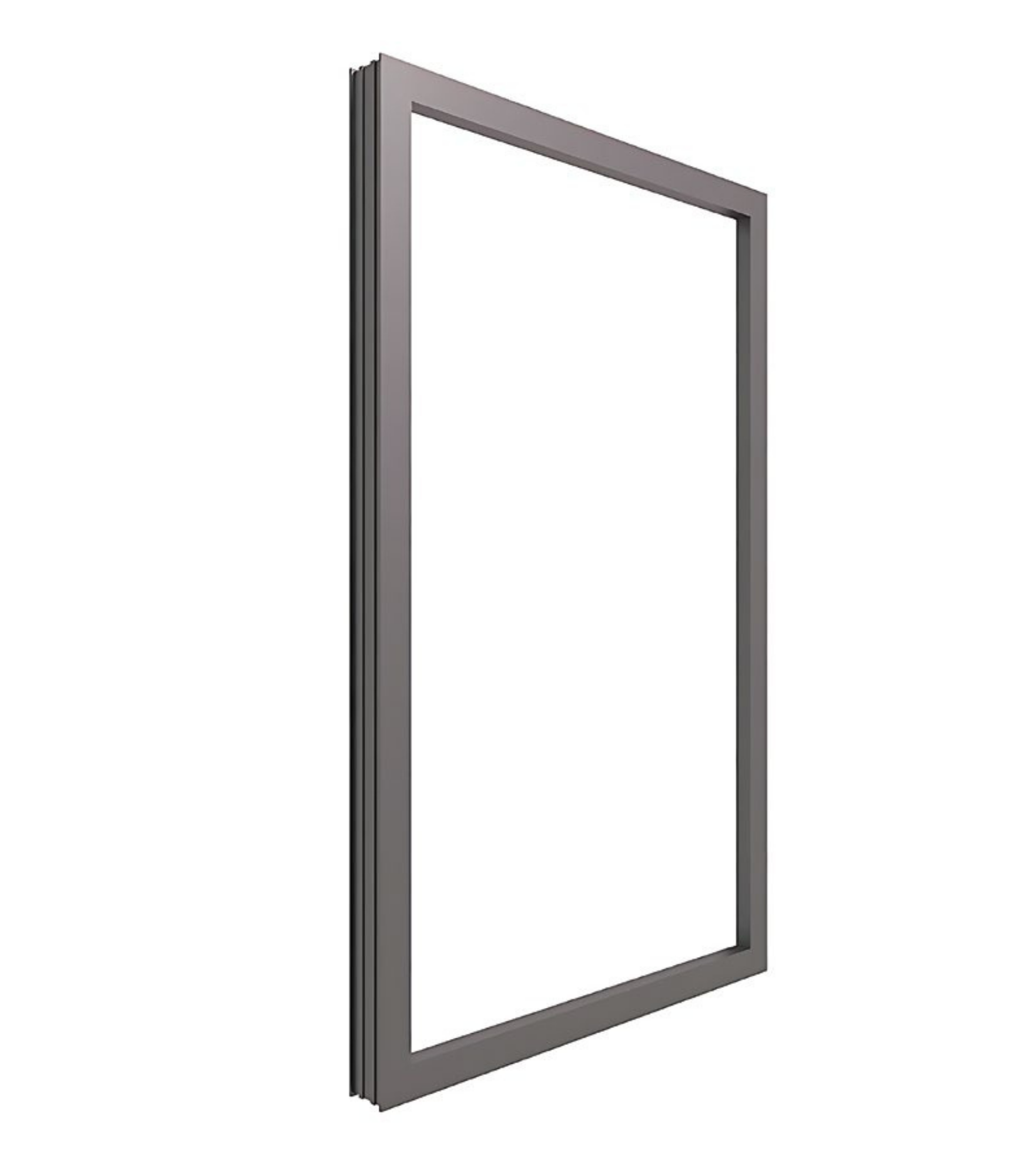

• Frame profile width: 1.97 inches – slim enough to disappear visually, wide enough to carry heavy glass
• Wall thickness: 0.079 inches – structural-grade aluminum extrusion
• Maximum span: Up to 120 inches wide on a single fixed unit (site-specific wind-load engineering applies)
• Configuration: Fixed, non-operable – no sash, no track, no moving parts
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Performance: NFRC-rated with thermal break; tested for air, water, and structural loads under AAMA protocols
• Installation standard: AAMA 2400/2410 compliant, installed by Juniper Windows West Covina

Custom sizes are available across the span range. We’ll cover exact dimensions, engineering requirements, and glass selection when we measure your opening.

Performance Features

Thermal Efficiency – The VLX 80 frame carries a polyamide thermal break that separates the exterior and interior aluminum. This interruption stops conductive heat transfer through the metal, which is the biggest thermal weakness of any aluminum window. Combined with Low-E glass, the NFRC-rated package keeps West Covina summer heat outside where it belongs and holds conditioned air inside. Your AC works less. Your energy bill reflects it.

Acoustic Performance – A fixed window outperforms any operable window on sound because there are no gaps in the perimeter. Laminated glass adds a PVB interlayer that dampens vibration, and we recommend it on any West Covina home near the 10 Freeway, the 60, or under the flight path. The difference between standard glass and laminated on a traffic-facing wall is immediate.

Airtightness & Weather Seal – Because the VLX 80 has no sash that opens, the entire glass-to-frame joint is a continuous structural seal. Air doesn’t find a path. On installation, we seal every perimeter joint with AAMA 812 low-expansion foam, then cap it with exterior-grade sealant. This is the standard the AAMA 2400/2410 protocols require, and it’s how we prevent drafts, dust, and the fine grit that blows down from the foothills.

Waterproofing – West Covina gets about 17 inches of rain a year, but when it comes, it comes hard. The VLX 80’s frame design channels any incidental moisture to the exterior weep plane rather than trapping it. Our install crew runs a water test after every fixed-window installation to confirm the seal before we pack up. No leaks, no callbacks, no water stains on your drywall.

Wind Resistance – The 0.079-inch wall thickness on the extrusion gives the VLX 80 real structural capacity. Wind-load rating depends on size, glass type, and exposure, and we engineer every West Covina install for the actual site conditions. A hillside home in the Galster area faces different pressures than a single-story on the flats, and the answer is never one-size-fits-all.

Security & Hardware – There is no hardware to fail, no lock to wear out, and no sash to pry. The fixed window is the most secure format in residential glazing. For homes where security is a stated concern – first-floor windows, rear elevations, side yards – we offer impact-resistant laminated glass that holds together even when struck. It’s the same principle auto glass uses, applied to your home.

Color & Glass Options

The VLX 80 comes in six finishes. Premium Black and Anodized Silver are the most requested in West Covina right now. Black frames on a white stucco exterior give that sharp, modern edge that pairs well with the remodeled ranch homes across town. Anodized Silver reads more industrial and works beautifully with concrete, steel, and exposed aggregate patios. Pure White suits traditional and Spanish-style homes where the window should blend with the wall, not contrast against it. Bronze and Champagne sit between those extremes – warm metals that complement wood eaves, clay tile, and the earth-tone palettes common in older West Covina neighborhoods. Teak Wood is a woodgrain powder coat that gives you a wood look without wood maintenance, and it’s a favorite for interiors where the frame stays visible and needs to match cabinetry or flooring.

On glass: Clear maximizes natural light and view fidelity. Low-E is our default recommendation for any West Covina elevation that gets direct afternoon sun – it reflects infrared heat while staying visually clear. Tempered glass is required by code in certain locations (near doors, low to the floor, large panels), and we’ll tell you precisely where it’s needed on your project. Laminated adds acoustic dampening and impact resistance. Frosted gives privacy for bathrooms or a side yard where you want light without a view. Gray Tint and Black Tint cut glare and reduce solar heat gain, which is useful on west-facing glass where the afternoon sun through the 60 corridor can be brutal.

Installation by Juniper Windows West Covina in West Covina

Here’s the part most window companies gloss over: a great window installed poorly is a bad window. The VLX 80’s thermal break and seal integrity only perform when the unit is set correctly in the opening. If the rough opening is out of square, the frame gets twisted, the glass flexes, and the seal eventually fails. That’s when you get fog between the panes – and a warranty claim that may be denied because the installation caused it.

ViewLux warranties their product. But like every major manufacturer, their warranty is conditional on proper installation. This is exactly why Juniper Windows West Covina maintains authorized partner status. We install these windows the way the manufacturer specifies, every time.

Our process in West Covina starts with a pre-install inspection of the rough opening. We check for rot, termite damage, out-of-plumb framing, and water intrusion before the new window ever comes off the truck. Then we set the VLX 80 level, plumb, and square – all three, checked with a laser, not eyeballed. The unit gets shimmed at the manufacturer-specified points, not wherever is convenient. We fill the full perimeter joint with AAMA 812 low-expansion foam sealant. That foam does two jobs: it insulates the gap and it acts as a secondary air and moisture barrier behind the exterior sealant.

All of our installations in West Covina follow AAMA 2400/2410 standards, which are the industry protocols for window installation water management. After install, we run a water test on every fixed window. We clean the glass, remove all packaging, and walk you through the final product. If a permit was pulled, we close it out with the city. If you’re in a hillside zone with stricter wind or seismic requirements, we handle that engineering before we ever order the window.

The local climate here – hot, dry summers, occasional heavy winter rain, and UV exposure that slowly breaks down cheap sealants – means installation detailing matters more in West Covina than it does in milder coastal cities. We seal, caulk, and detail for this climate specifically.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window? Most VLX 80 fixed units run 3 to 5 weeks from order to delivery at our West Covina shop. Larger custom spans or special glass (like laminated or black tint) can extend that another 7 to 10 days. As a ViewLux authorized partner, we get factory scheduling priority and accurate lead times on every order. Call (350) 305-4609 and we’ll confirm the current lead time for your specific size and glass package.

Does the VLX 80 qualify for energy tax credits? The VLX 80 can qualify for federal energy tax credits when configured with Low-E glass that meets the current ENERGY STAR criteria for the Southern California climate zone. We’ll confirm your specific glass package meets the NFRC ratings required before you order. Call (350) 305-4609 to discuss your project, and we’ll walk you through what qualifies and what doesn’t.

What warranty comes with the Fixed / Picture Window? ViewLux backs the VLX 80 frame and glass with a manufacturer warranty that covers materials and factory defects. Juniper Windows West Covina backs the installation with our own workmanship warranty on the labor. Twin coverage means if something fails because of the product or the install, someone is accountable. Call (350) 305-4609 and we’ll send you the warranty document for the exact configuration you’re considering.

Can I customize the size of the VLX 80? Yes, and that’s one of the real advantages of a manufactured aluminum system like this versus a stock vinyl window. We order to your precise rough opening dimensions, not the nearest stock size. Up to 120 inches wide on a single unit, and height is equally flexible within wind-load limits. For glass walls beyond that span, we engineer mulled units. Call (350) 305-4609 to schedule a free measurement and find out exactly what your opening can handle.

How do I maintain aluminum frames in West Covina’s climate? Wash the frames twice a year with mild soap and water, rinse clean, and dry. That’s it. The powder-coated and anodized finishes don’t require painting, sealing, or staining – ever. The glass cleans with any standard glass cleaner. Check the exterior perimeter caulk once a year for cracks, and call us if you see any. Our aluminum frames in West Covina routinely go 20-plus years with zero finish degradation. Call (350) 305-4609 if you want us to take a look at existing frames during a quote visit.

Get a Quote – VLX 80 Fixed / Picture Window in West Covina

If you’re planning a remodel in West Covina and the VLX 80 Fixed / Picture Window is on your short list, start with a measurement. We’ll come to your home, evaluate the opening, confirm engineering requirements, and give you a written line-item quote – no change orders later, no surprises. Call (350) 305-4609 to schedule your free on-site measurement, or stop by and we’ll show you the VLX 80 in person. Juniper Windows West Covina is your local authorized ViewLux partner, and we’d be glad to earn the job.

Written by the team at Juniper Windows West Covina, serving West Covina, CA.
